Industrial Power flat Fransmission belts abrasion resistance

Name: Industrial Power flat Fransmission belts abrasion resistance
Brand: jiuna
Price: 1 USD

Buy cheap Industrial Power flat Fransmission belts abrasion resistance product

Brand Name : jiuna

Model Number : Diameter 2mm~20mm

Certification : ROHS

Place of Origin : China

MOQ : 10rolls

Payment Terms : T/T, 50% payment in advance ,50% balance before shipment ; Western Union ; L/C

Supply Ability : 96.000 meters per Month

Delivery Time : Within 5 working days After receipt of your deposit

Packaging Details : Inner packing is plastic film .outer packing is carton .

tensile rate : 0.3kg-31.3kg

color : green

Tensile Strength : 55N/mm2

material : PU

longth : 300m/roll 200m/roll 100m/roll 30m/roll

hardness : 85A-90A

Contact Now

Industrial Power flat Fransmission belts abrasion resistance

Detailed Product Description:

PU Cord Belt Application :

1. Wall floor tile conveying industrial line

2. printing and packing machine

3. food & beverage processing

4. wood processing

5. paper processing

6. electronic

7. post service

8. tobacco transmission line

PU Cord Properties :

-Excellent abrasion resistance.

-Good resistance to fuel , oils and oxygen.

-Contains no plasticizer.

-Wide application temperature from -30℃~+80℃

transmission Round Belting Feature :

1. With excellent bend resistant

2. wear resistant

3. easy connected

4. it's not easy to be broken at low temperature

Items No. φ	least radius of gyration		stretch rate	Maximum tensile rate		Hardness	length of rolled
DIA (mm)	In	mm	Stretching rate	Kg	Lbs	Hardness (A)	Roll (m)
2	0.79	20	1.5-3%	0.3	0.7	90	400
3	0.98	25	1.5-3%	0.7	1.6	90	400
4	1.38	35	1.5-3%	1.2	2.7	85	200
5	1.57	40	1.5-3%	2.0	4.3	85	100
6	1.97	50	1.5-3%	3.2	7.0	85	100
7	2.17	55	1.5-3%	4.1	9.0	85	100
8	2.56	65	1.5-3%	5.0	11.0	85	100
9	2.95	75	1.5-3%	6.8	15.0	85	50
10	2.95	75	1.5-3%	7.7	17.0	85	50
12	3.94	100	1.5-3%	12.2	27.0	85	30
15	4.72	120	1.5-3%	17.7	39.0	85	30
18	5.71	145	1.5-3%	25.4	56.0	85	30
20	6.30	160	1.5-3%	31.3	69.0	85	30

Industrial Power flat Fransmission belts abrasion resistance

Product Tags:

pu round belt

green round belt

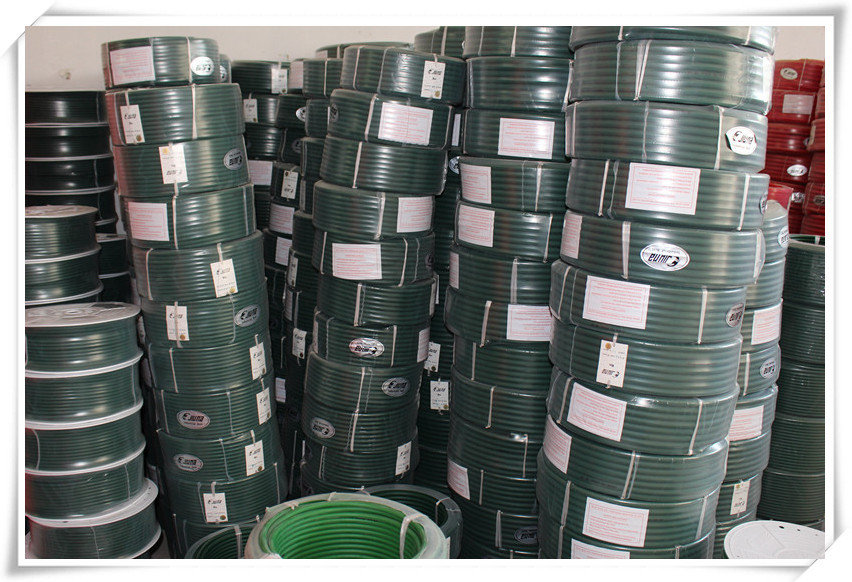

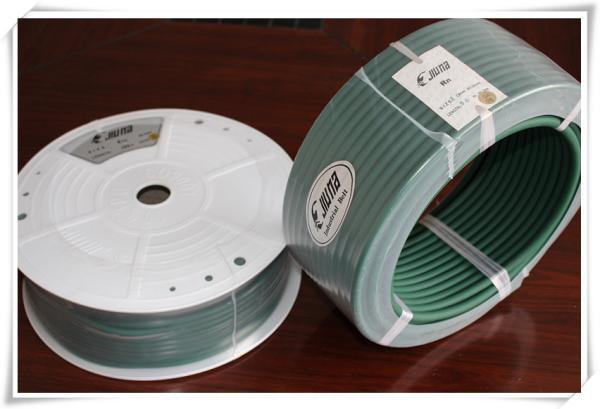

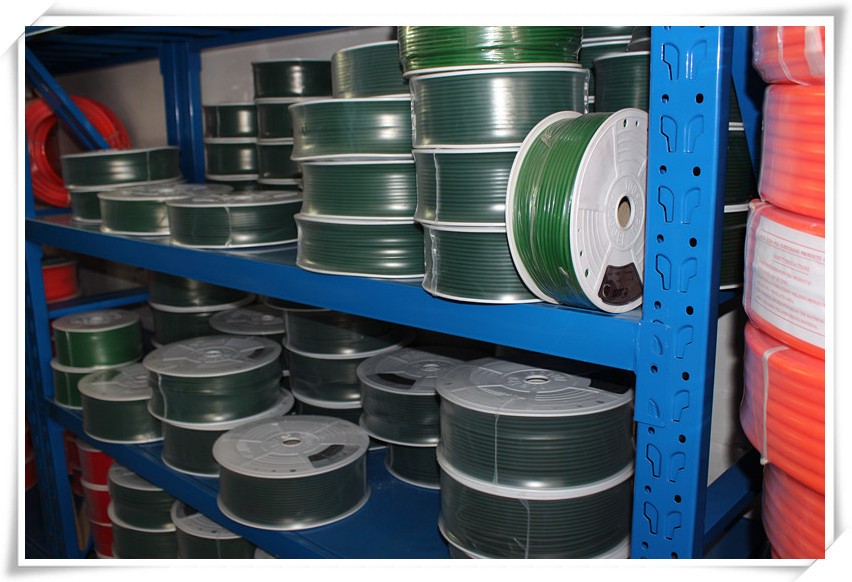

Industrial Power flat Fransmission belts abrasion resistance Images
